The car was meant to be low. Very low. Very very low.  And ride height was static via ground control coil-overs. That made the front valence very low. And we wanted to keep that way because we had some aero mods in store including a fully functional diffuser system. So what do we do? Loading it onto trailers would be an unthinkable task. We made the front end removable.

We did this buy buying an OEM late model front valence and cutting it up. Yup. A brand new valence. We did this because it had to be perfectly straight. We practiced with a questionable unit and we knew what we had to do to make it removable. We had to make the OEM piece into 2 pieces. An upper half and a lower half. We would then make sure the upper piece stayed on the car as the original engineers had intended. But the lower half would come off with the bumper.

We used the 2 stock bolt locations to run pins to be able to pull on to remove the bumper setup and the lower half of the valence in a couple seconds.

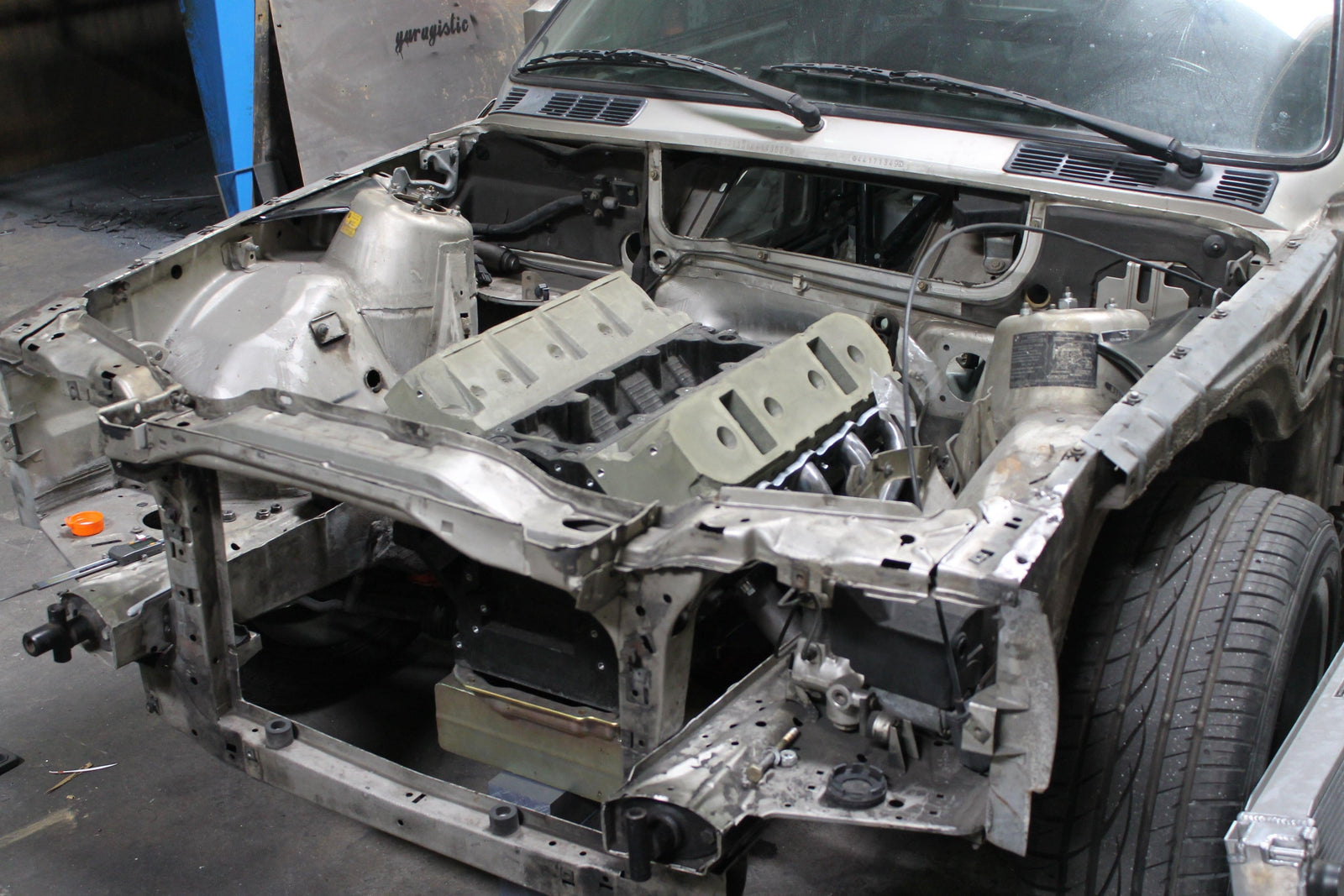

That pair with the e30 removable core support, we would be able to service the car in a hurry if we needed to.
