E30 Polyurethane Round Shifter Bushing Kit
E30 Polyurethane Round Shifter Bushing Kit
E30 Polyurethane Round Shifter Bushing Kit
E30 Polyurethane Round Shifter Bushing Kit

E30 Polyurethane Round Shifter Bushing Kit


Sale price $51.00 Save 0%

Only 963 items in stock!

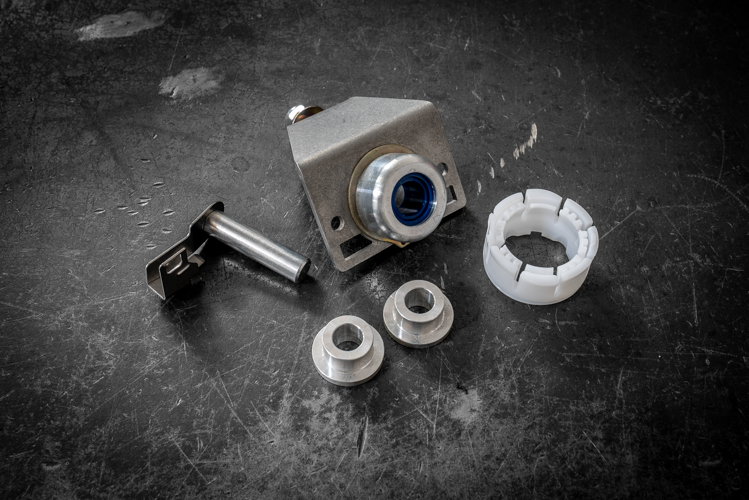

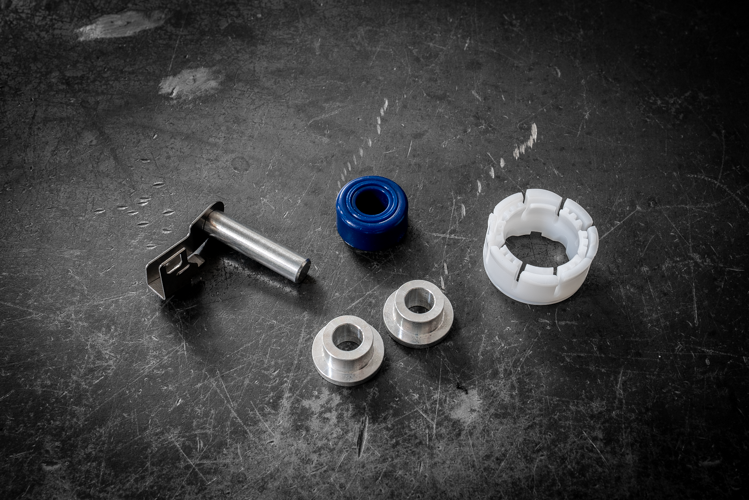

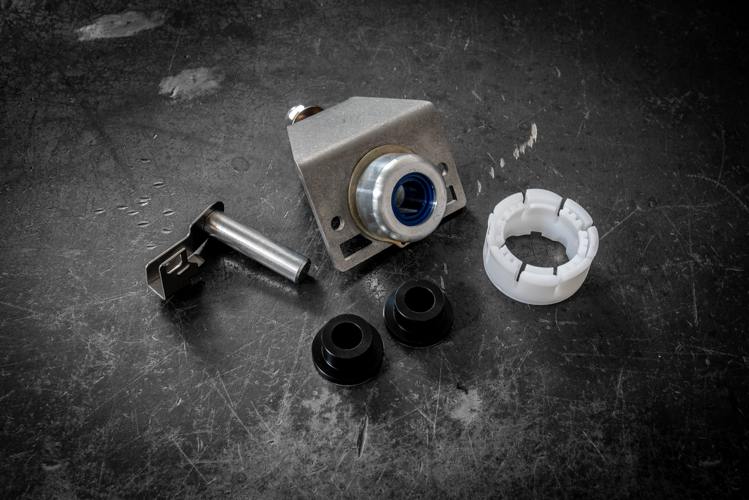

This is our complete polyurethane shifter bushing rebuild kit. It features our round shifter bushings, OEM shifter cup, poly rear carrier bushing, and bitch clip.  Our Garagistic poly carrier bushings replace the original rubber bushing (which not only had lots of  "give" but is usually neglected and degrades over time). These eliminate any side-to-side movement of the aluminum shifter carrier.

These Delrin or aluminum front shifter bushings fit at the front of the aluminum carrier so NO additional vibration or harshness will be felt. Replaces part number: 25117519669 (round bushing), 25111469397 (25111220600) shifter cup, Bushing inside of 25111220707, 25111221849 (clip).

This does not fit early sheet metal E30 shifters.

Here we get into the instructions on how to install your Garagistic Delrin front and rear bushing.


There is a certain tool that will make your life a lot easier when installing these products.
Its a "hook tool" Part number 926572 from Harbor Freight. It can be found here: http://www.harborfreight.com/8-inch-radiator-hose-pick-96572.html . You will use this hook tool to remove the "bitch clip". Buy this tool, it makes the job only take a few seconds.

removal of e30 bitch clip

E30 hook tool

  • The trans should be supported by the jack,
  • Lower the jack down until the jack pad is no longer touching the trans then go up slightly to hold it a small amount. you need to do this to allow the bitch clip to rotate back once its unclipped.
  • With the hook pointed towards the driver side reach above next to the shift carrier and unclip it.

here is a link just for the bitch clip


next is the removal of 1 13mm nut at the rear of the shift carrier.

  • Now you will have the shift carrier out of the car.
  • You need to remove the front carrier bushing.
  • Its a rubber bushing with a metal sleeve.

Use a exacto knife or a razor blade to cut the end of.

Once you cut the sleeve off you can push the rubber to the other side to remove it.


Now your shift carrier should be like this (or similar).

Now you may press the Garagistic front carrier bushing in.

garagistic delrin bushings

If you also bought the rear delrin bushing. The following are the instructions for that.



e30 rear delrin shifter bushings

Installation requres that the edge on the back of the carrier be grinded down a bit.



You can see the metal file we used in this picture and the Garagistic rear delrin bushing (can be bought here).


Next step is to burn out the old bushing on the rear carrier bracket.

hammer in the new delrin bushing with the chamfered end in first.

Should look like this when its done.

It may be a good idea to "dimple" the metal housings after putting the bushing in.This will ensure that the  bushing doesn't slip out the back. Use a punch and hammer for this process.
