1/2 BMW Rear Subframe Camber OR Toe Correction Kits (E30, E28, E34, Z3, E21)
1/2 BMW Rear Subframe Camber OR Toe Correction Kits (E30, E28, E34, Z3, E21) is currently on BACKORDER. We will ship your order once it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
PREORDER
Please note that your order will ship when this item is back in stock.
1/2 BMW REAR SUBFRAME CAMBER OR TOE CORRECTION BRACKETS
Overview
The stock E30, E21, E28, E32, and E34 rear subframes do not allow you to align the rear wheels. Alignment is a critical point in any performance-driven or lowered vehicle. Proper alignment can have a night and day difference on how your car handles, and how your tires wear. When an E30 is lowered, the car has a lot of negative camber (up to 6 degrees!). Although this is wanted by some, in most cases it can be excessive. These brackets get welded to the rear subframe on the rear control arm mounting points. You slot the original hole and have these professionally welded in place. Then using eccentric hardware, the rear of your E30 can be aligned!
Compatibility
These can be used for BMW E21, E28, E30, E32, E34, E36 318ti, and Z3. These are spec E30 legal! Professional installation recommended. WELDING REQUIRED! More details.
WHAT'S INCLUDED AND WHICH KIT DO I NEED?

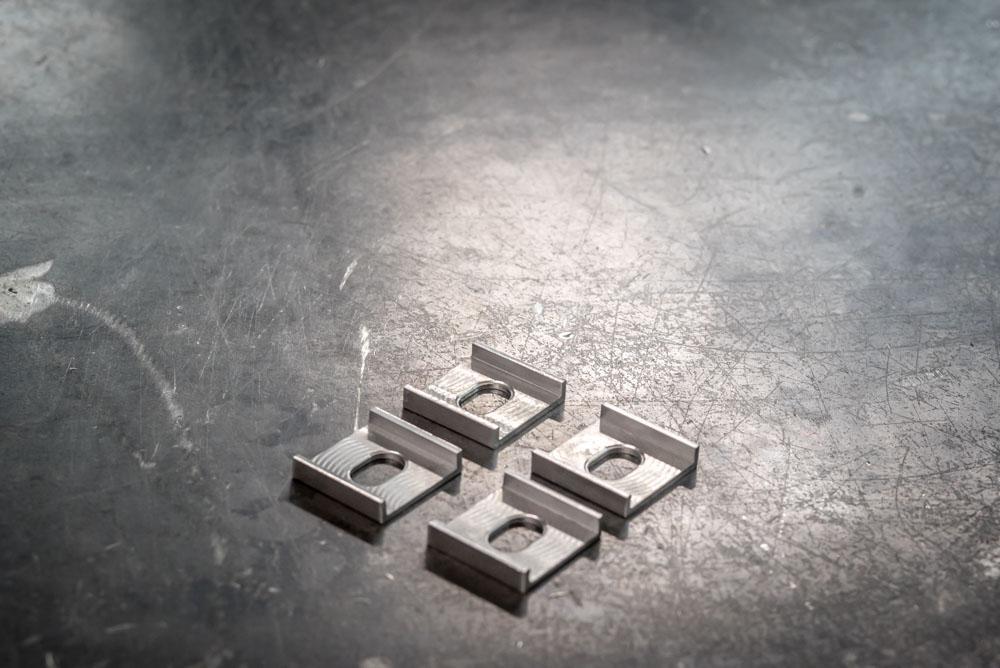

Each "kit" includes 4 brackets. This is enough to do either camber OR toe. You need to order 2 kits or our complete kit to make the rear subframe fully adjustable for both camber AND toe. This kit does NOT include the eccentric hardware unless selected in the options. The subframe has 4 mounting points for the rear trailing arm, 2 per side. The camber is adjusted using the inner mounts (closest to diff), and toe is adjusted with the outer mounts (closest to the wheels). The camber brackets (inner tabs) should be welded with the slots going up and down. The toe bracket (outer tabs) slots should be horizontal (front to back). To make sure you get the right order: One kit will do either toe OR camber. Two kits will do both toe AND camber.
HARDWARE INFO
Please be sure to check if you want the genuine BMW OEM Hardware( Includes Eccentric Bolts, Eccentric Washers, and Bolts) or if you would like the Garagistic eccentrics shown below. If you get your own OEM Hardware the BMW part numbers: 33321095102 - Eccentric Bolt 33306786186 - Eccentric Flat Washer 33326760668 - Self-Locking Collar Nut Instructions on how to install kit can be found here.
