BMW E30 M3 DSSR - 25111220322

Description

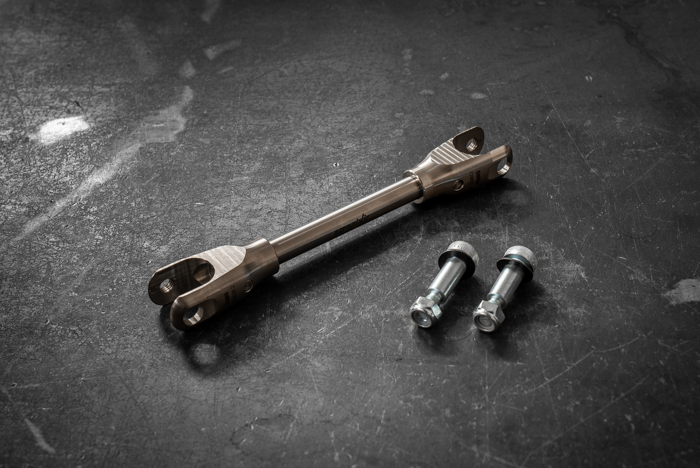

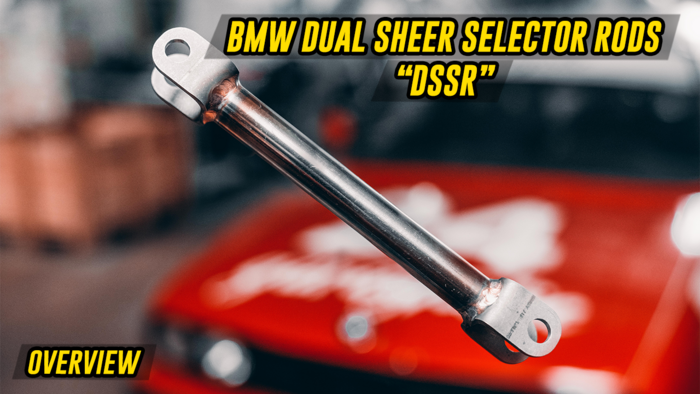

Introducing the Garagistic E30 M3 DSSR for your 1987-1991 M3. To start off, what is a DSSR, you ask? Well, it stands for double shear selector rod; it's a selector rod that will spread the torsional force on both sides of the selector rod instead of the OEM piece which connects from one side only. Based on the concept of the E30 M3 DTM cars of legend! Going to a DSSR in your E30 will mean less play in the shifter (decreases side-to-side motion). This means a more precise and smooth shift every time.

Now to the details. The stainless shift rod is made of 304 stainless right here in our shop in Westminster, CA, USA. Tig welded stainless for the ultimate in durability, fit, and finish. As always is backed by our Garagistic NO QUESTIONS ASKED Lifetime Warranty. If for any reason you are unsatisfied with the product, you can send it back for a full refund. Please note: Compatible with OEM-style shifters only (some shifters will need to be slightly filed down to fit). The factory vibration damper must be removed for proper clearance around the flex coupler (giubo).

It's a really good idea to change your transmission fluid while you are down there. We recommend this fluid: https://amzn.to/41KYOnn . One of these is also helpful when your doing it: https://amzn.to/3N3piN2

Got a setup that's a little different than OEM? You could always get the "Weld it yourself" Dssr found here.

Fitment

• Fits: all 1987-1991 BMW E30 M3 models
  • Fits: all Early Model E30 320i/is up to 09/1985
• Fits: Some E21 320's
• Fits: Late Model E23 728i/733i (09/1982 - 09/1985)


Please Note: This DSSR MUST be used with a Centered Selector Joint such as our Standard Selector Joint, or BMW E30 selector joint part# 25117503525 (8/89 Forward)

Don't forget to do the selector joint while you replace your dssr!

• E36, E34, E39, E46, E60 etc with part number 25117580281 can be found here.

Included

• 215 mm E30 DSSR (which replaces part number 25111220322)

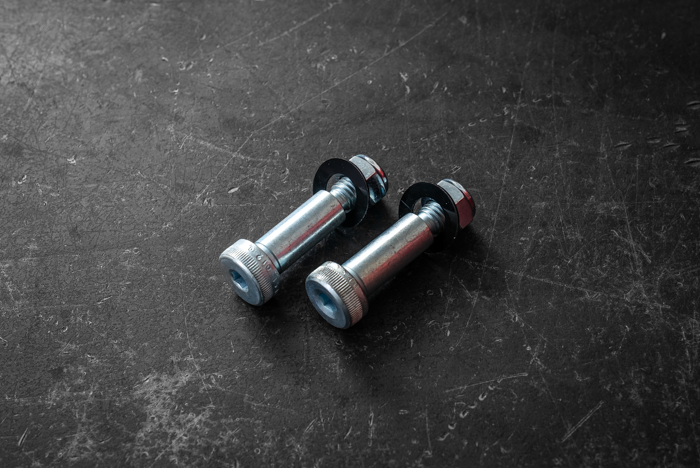

• Necessary hardware BMW selector joint part# 25117503525 (added option!)

Instructions:

garagistic DSSR

Installation Instructions

Step 1: With a flat-head screwdriver, remove the locking clip by pushing on the inside lip of the clip to slide it off the selector rod on the shifter side of the selector joint.

Step 2: Wiggle and pull the selector rod until its free on both ends. Pay attention to the bends of the selector rod and how it came off, as it will be your guide on how to install the DSSR in the proper direction.

Step 3: Grab your garagistic DSSR, and starting with the selector joint side first, line up the holes on the DSSR with the selector joint. It should be a tight fit, but if it's too tight, open the tabs a bit till you achieve proper fitment. Once aligned, slide the provided pins in with a washer on each side, followed by the C-clip to lock it in. Repeat on the shifter side.

Notice: If you upgraded to a Z3 shifter you will have to shave down the sides of the shifter for the DSSR to fit

Disclaimer

This instructional guide is intended to provide general information only. We recommend a professional automotive technician install any of our products. In no event shall Garagistic be liable for any special, direct, indirect, consequential, incidental injuries or damages whatsoever.
