E30 Bolt In Roll Bar - Coupe & Sedan

Made to Order:  Current lead times on roll bars are 3-5 weeks. Powdercoat Options will have an additional 2 week turnaround time. They are "pre-order" for this reason. If you need a roll bar ASAP, please reach out to our support team before placing an order and we may be able to help expedite the process.

Overview

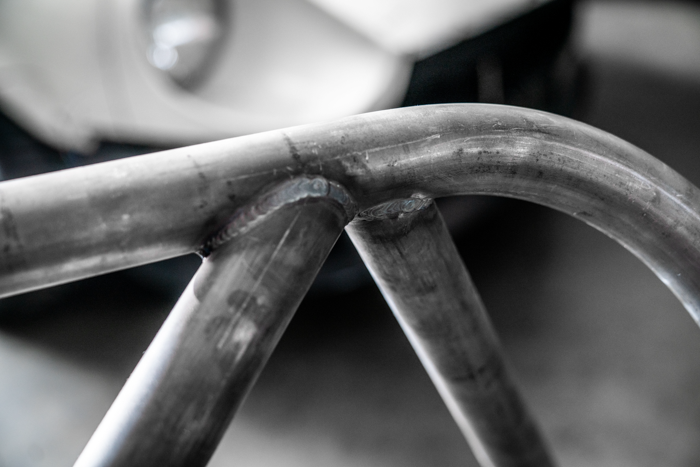

The Garagistic bolt-in roll bar for the E30 chassis is built with the dual-purpose driving enthusiast in mind! This roll bar is made of high-strength DOM tubing with 1/8" thick mounting plates for the best in strength and durability. It features a nice snug fit while still retaining the use of factory seat belts. Keeping in mind that the majority of E30s in the USA have sunroofs, the fitment of the main hoop bar is designed for a car with a sunroof. Slicktop E30s or those who have had their sunroof deleted may prefer to get our DIY kit instead.

Unlike some competitors, our roll bar's feet of the main hoop mount to the outer thicker area of the floorboard instead of the thin footwell. This helps to ensure a strong mounting point and prevents tear through if the worst should happen. Also included with the E30 roll bar are outer reinforcement plates that help to further reinforce the mounting points by squeezing from both inside and out. Strap in and protect your noggin with a Garagistic roll bar for your E30!

Tall Drivers! Please Read:

For all you tall folks, if the back of your seat is past the B pillar in your natural driving position, you will need the bent harness bar! If you think your seating position is close to your back being behind the B pillar, we recommend getting your roll bar with the bent harness bar!

Available Options

2 Harness Bar Options

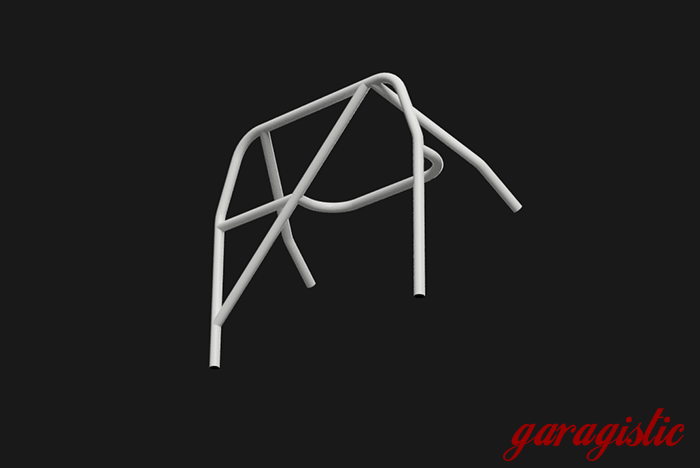

• Straight Harness Bar
• Bent Harness Bar
  • This bar is for taller drivers. If the back of your seat is behind the B pillar (in a sedan) you will need to use this bar. We recommend checking your seating position before fully welding the harness bar.

Rear Roll Bar Leg Options

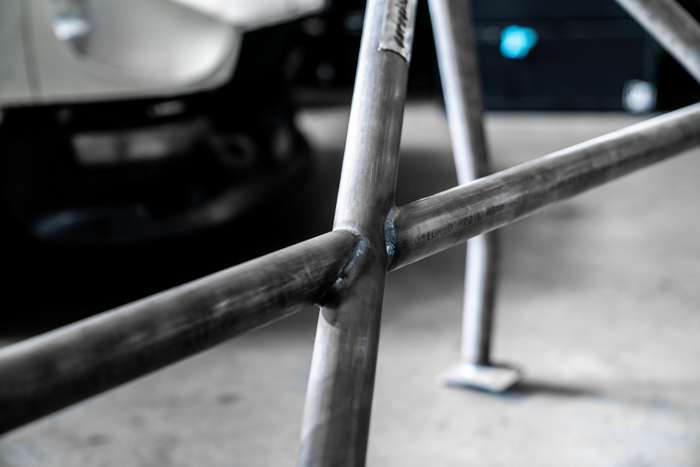

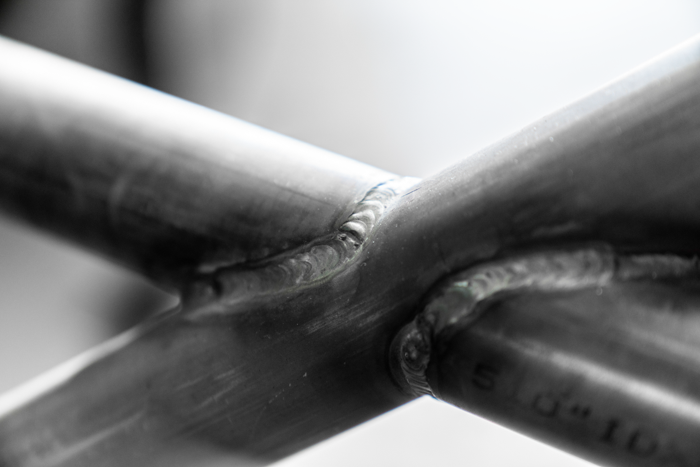

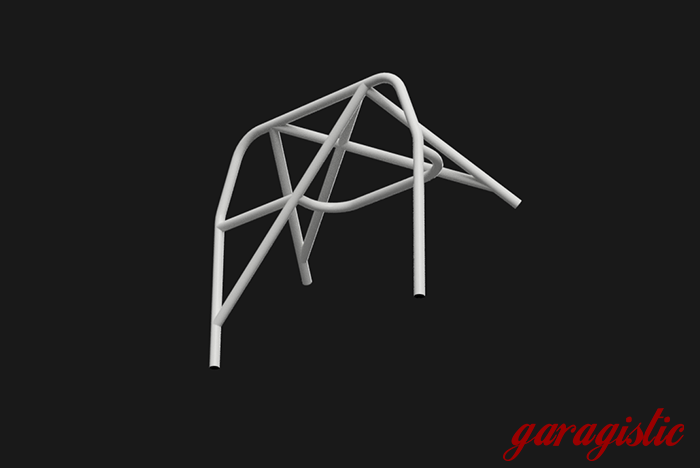

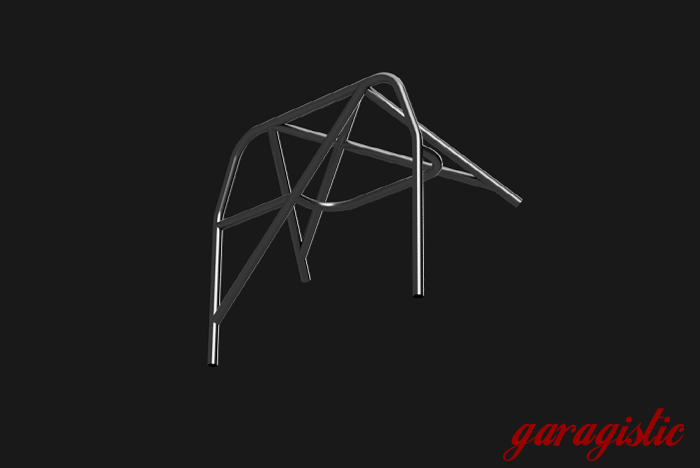

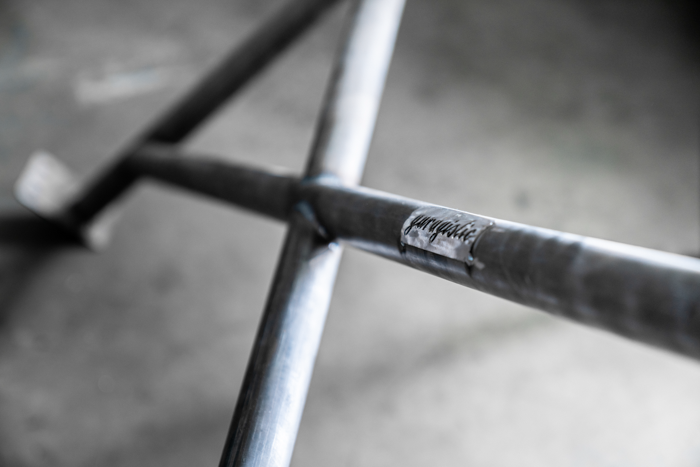

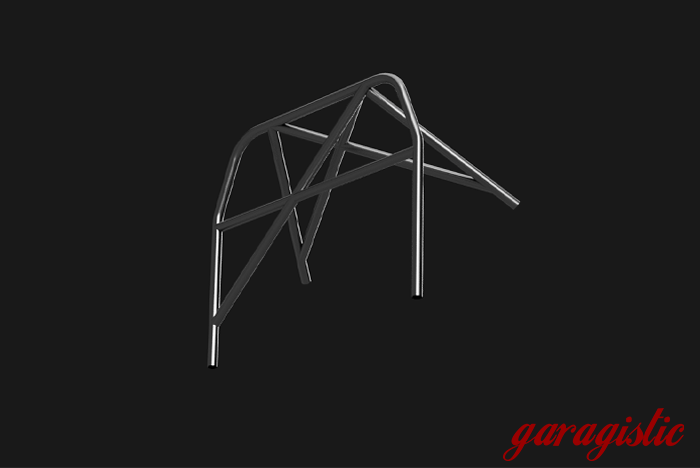

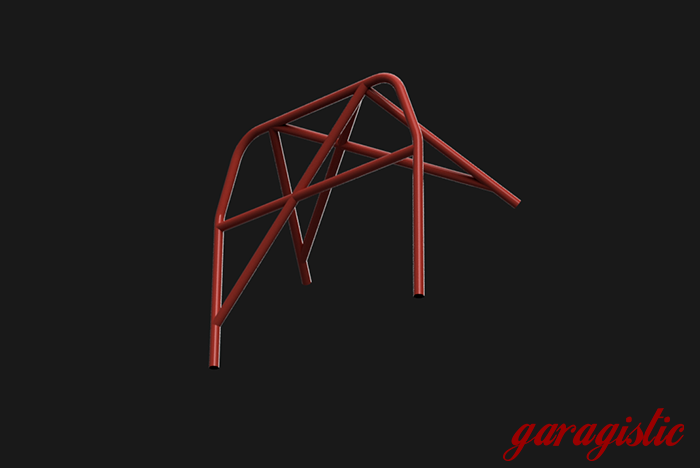

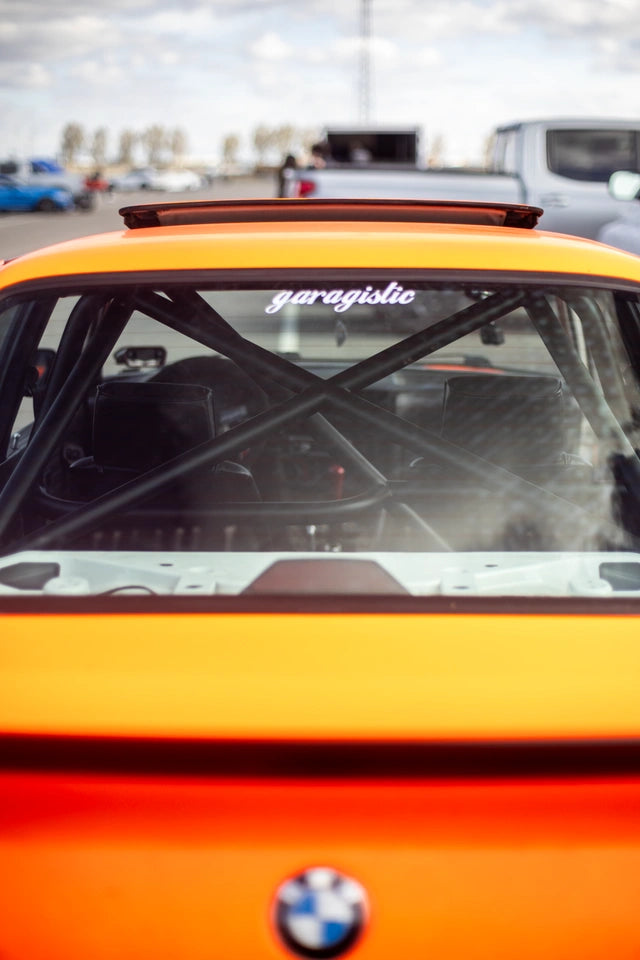

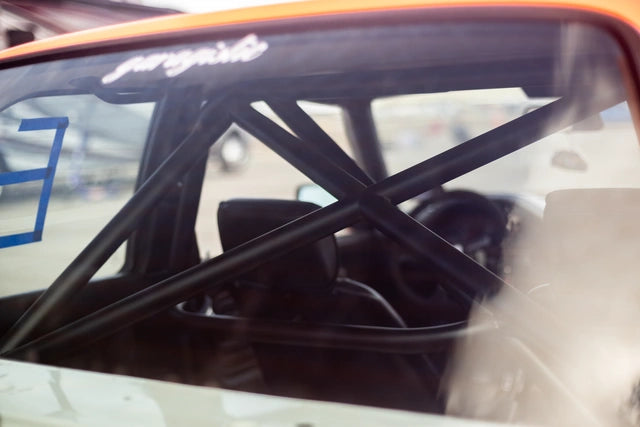

• Rear X Bracing
  • Consisting of three bars to add the iconic X to the rear, these are optional to add extra rigidity to the chassis, and are only available with straight rear legs. Those who prefer to save a little weight can choose to not add the X. Removal of the backseat is necessary.

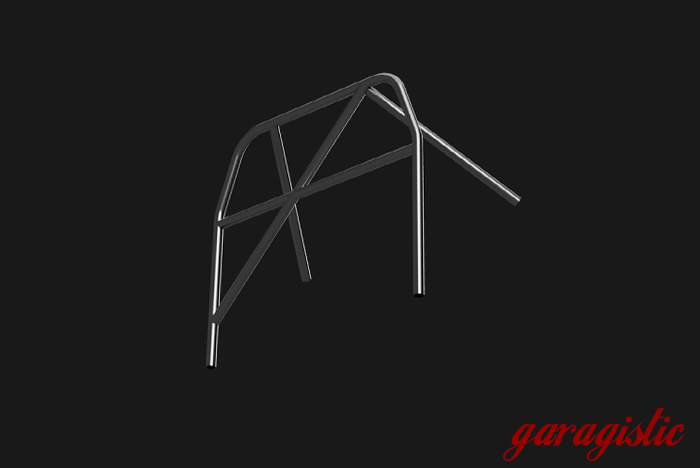

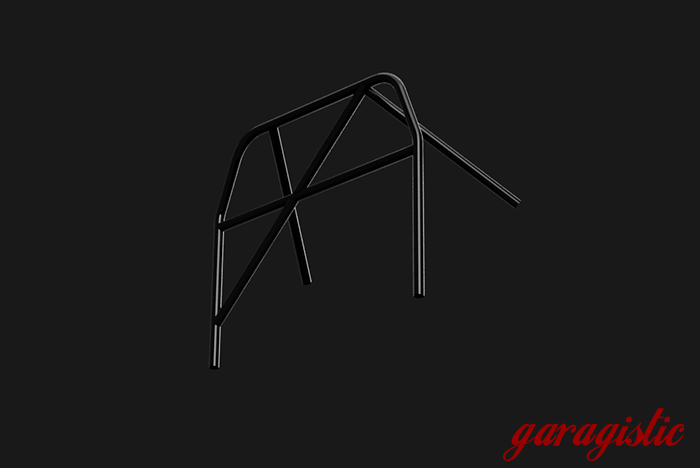

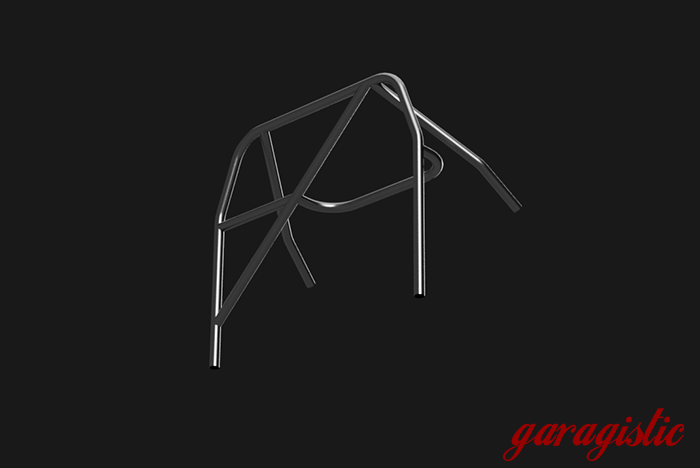

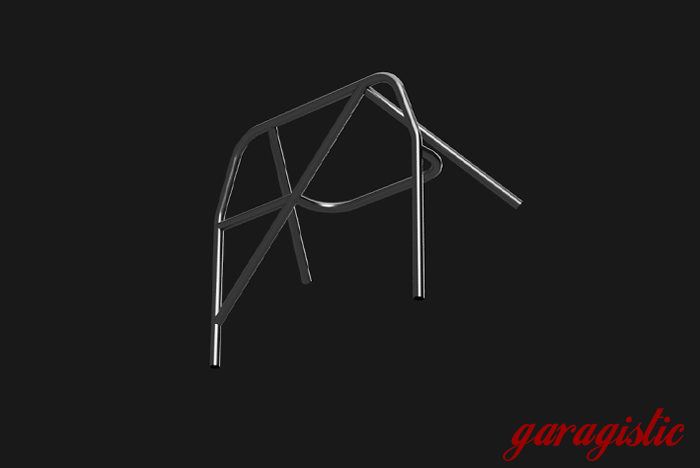

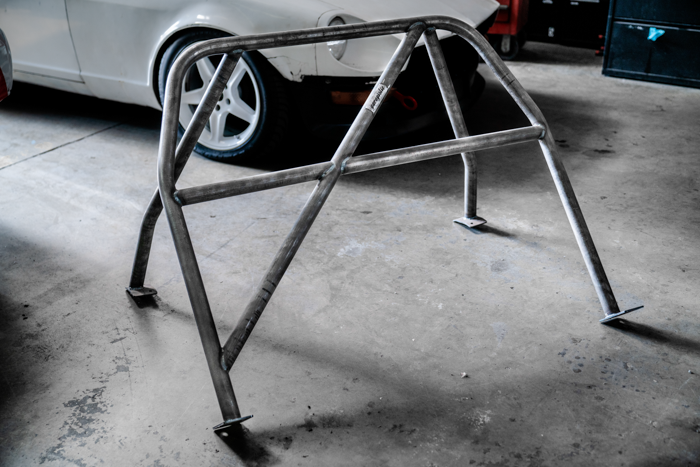

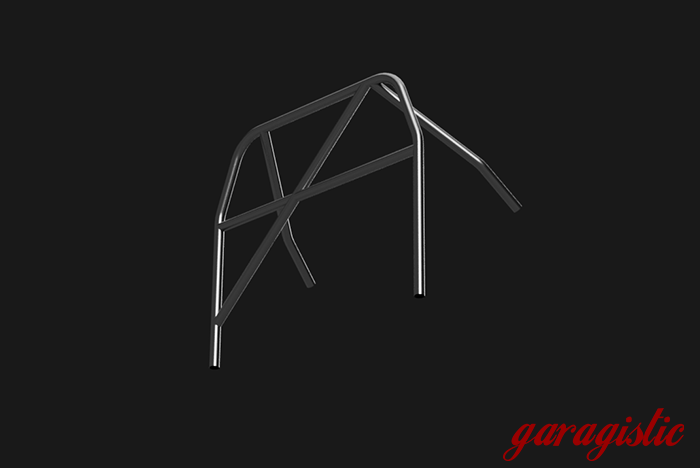

• Straight Rear Legs (Not compatible with rear X bracing)

  • The lightest option, this is the classic roll bar look with two straight rear legs. Removal of the backseat is necessary.

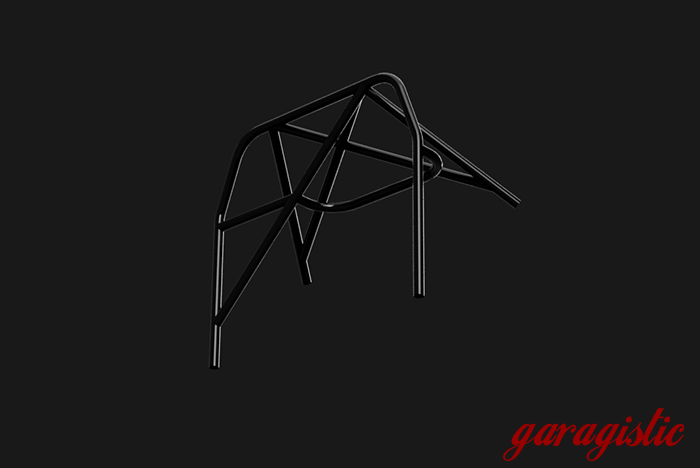

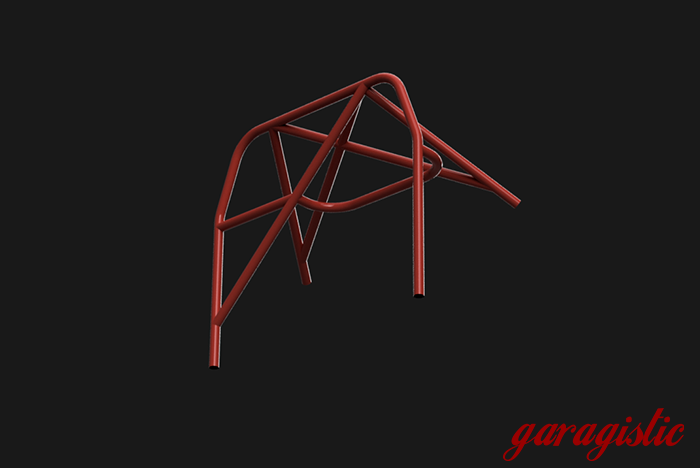

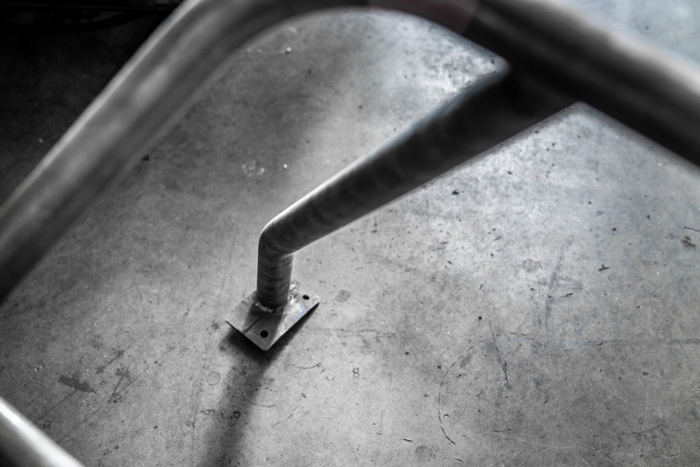

• Bent Rear Legs x2 pcs

  • These legs curve at the bottom to allow for a modified rear seat cushion to be installed (some foam will need to be removed to clear the tube)
  • Please Note: Passengers are NOT recommended to sit in the backseat with a roll bar

Included

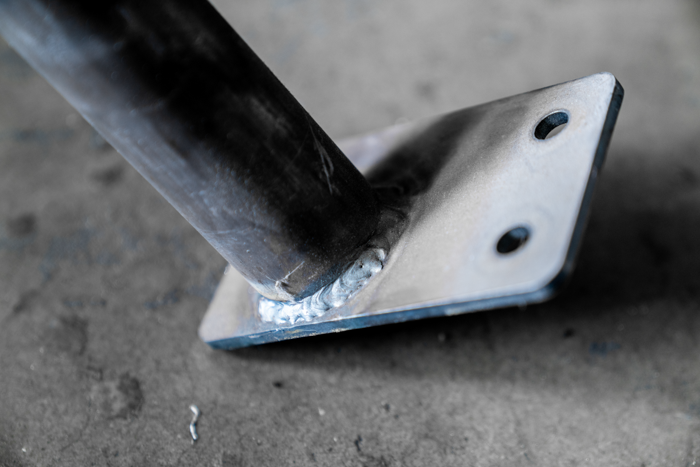

• Flat Front Roll Bar Feet

  • 1 pair for the outside to reinforce the mounting points
• Bent Rear Roll Bar Feet

  • 1 pair for the outside to reinforce the mounting points

• Hardware
  • M10 bolts, nuts, and nylon locking nuts - (QTY 12)
  • Recommended to install with locking nuts on top to prevent damage to the bolt threads in the event that your car comes into contact with road debris

Shipping

Please keep in mind these roll bars are so large that they must be shipped via freight shipping on a pallet. While we do our best to protect our roll bars during shipping, some small scratches or scuffs may be present due to the nature of freight shipping. We do not warranty any kinds of scratches or small damages to the finish.

We DO offer international shipping! However, these quotes will not be accurate on the website because we can get custom pricing for international freight. International customers MUST email us for an exact quote!
Email = support@garagistic.com.

Features & Specs

• Material: 1.75 dia x .120 wall DOM Tubing Fit
• Install: Easy to Install (Minimal Modifications Required)
• Design Feature: Allows retention of factory seat belts
• Design Options: Various options for bracing and harness compatibility and fit

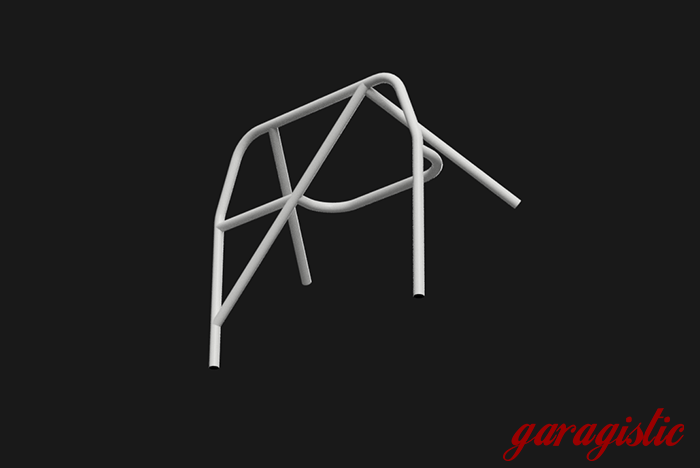

• Finish: Bare + Powder Coat Options

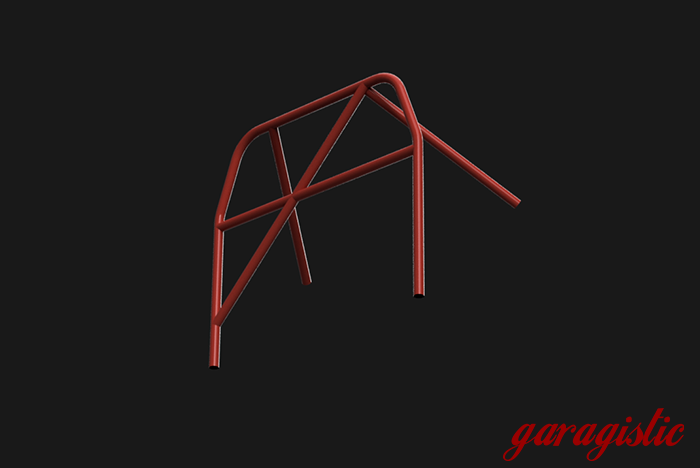

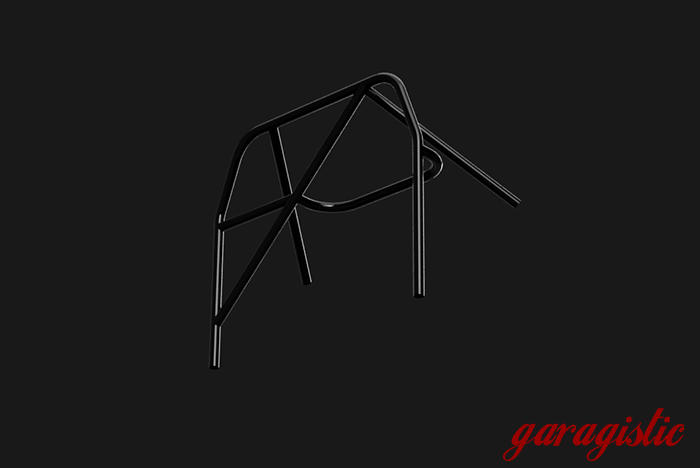

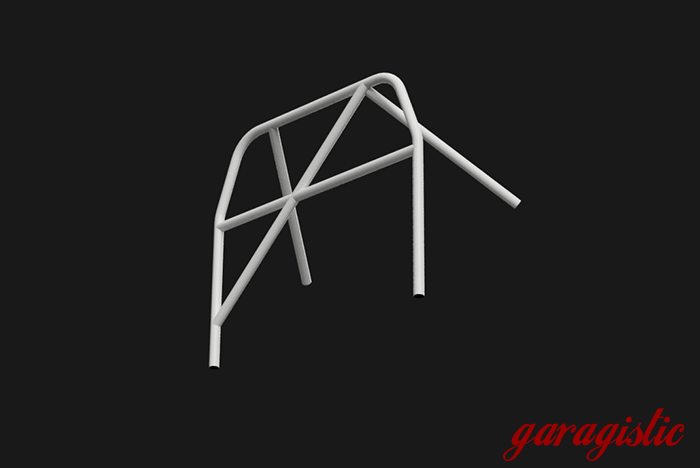

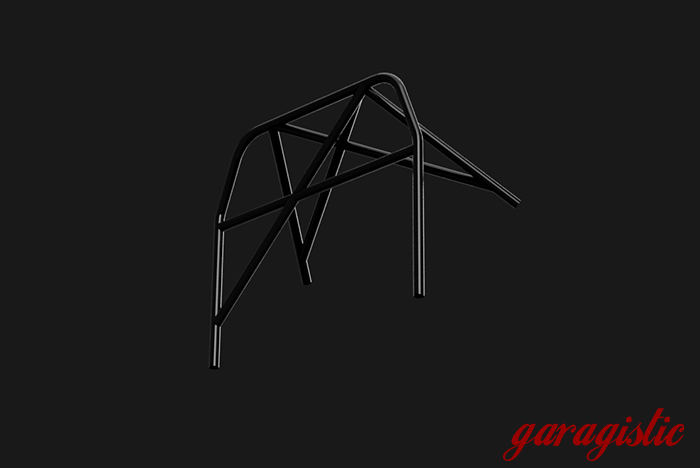

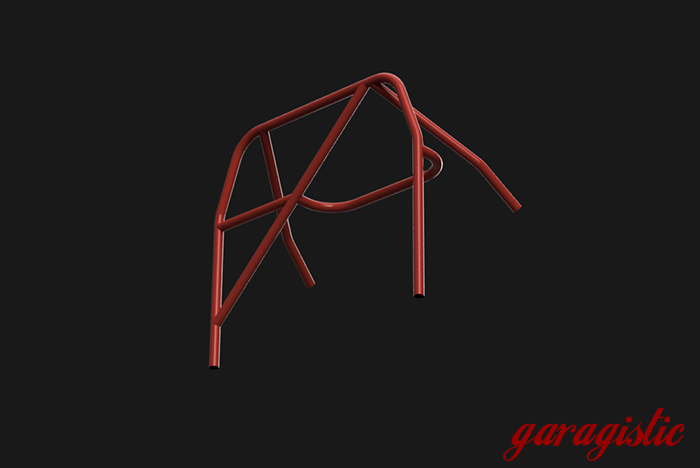

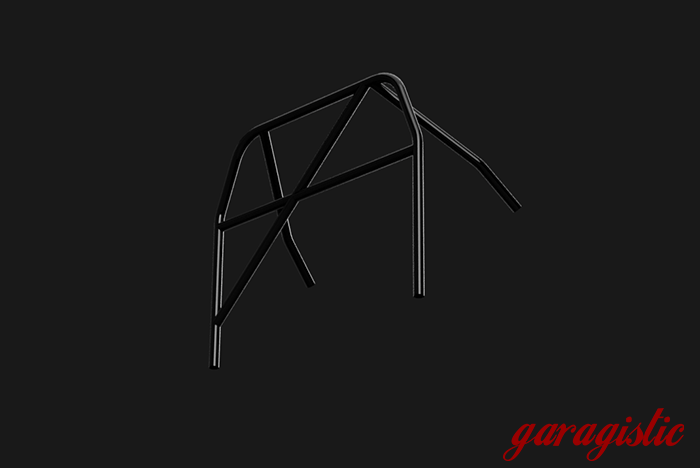

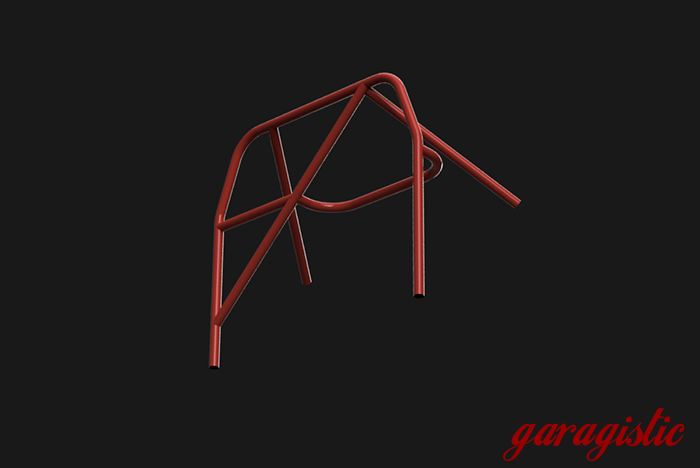

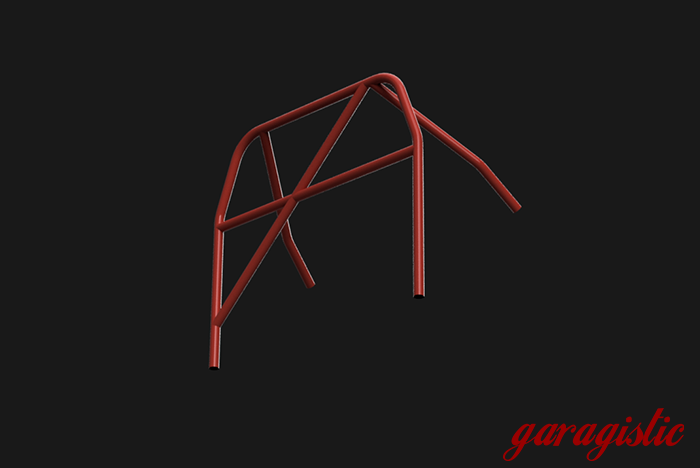

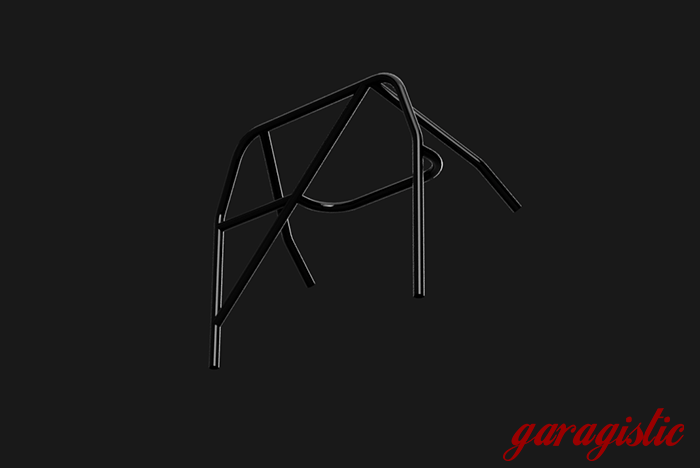

• Optional: Powder Coating Options Available (Black, White and Red)
• Hardware: Additional mounting plates and hardware included

Fitment

• Intended to fit E30s with Sunroof! (Slick top cars, will have extra room between roof and top of roll bar)
• Bolt up fitment with no welding or fabrication required


Release of Liability: In no event shall Garagistic be liable for any direct, indirect, punitive, incidental, special, or consequential damages to property or life, whatsoever arising out of or connected with the use or misuse of this product. Under no circumstance do we imply that this product improves the safety of your car or prevents injury from occurring during an automotive incident. This product is strictly for off-road use and is simply the precursor material for producing a harness bar, roll bar, or aesthetic modification. It is not intended for use in any motorized vehicle.
