Late Model E30 Complete Pedal Bushing Rebuild Kit

K0705

Regular price $105.00 Sale price $95.00 Save 10%
/


BMW E30 Late Model Complete Pedal Bushing Rebuild Kit

Product Overview

With age, worn-out bushings in your E30's pedals and throttle cable may start to make the car feel sluggish and even a little loose. By refreshing these components your driving experience will greatly improve. This is the complete kit to refresh your E30's accelerator, brake, clutch pedals and your throttle cable to bring back that factory fresh crispness. These upgrades improve driving feel without any compromises. Popular with racers, track day enthusiasts, and street cruisers, this kit is a must-have mod for every E30 owner.

Fitment:

  • Late model E30 325i/is 1989+

Included in this kit:



Instructions on installing these bushings can be found in the links above*

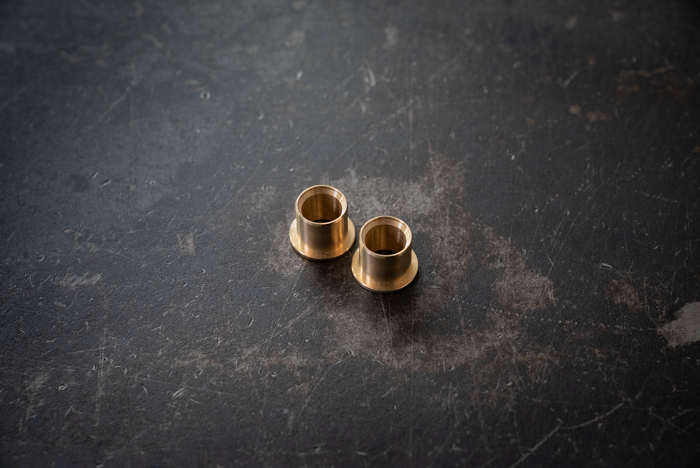

Accelerator Pedal Bushings Install


1) First uninstall the accelerator pedal by removing the c-clip or pins located at the back of the pedal


2) Remove the throttle cable from the bracket


3) Remove the accelerator pedal pivot bracket clip holding the assembly in place. Once removed, the pedal will be free


4) Remove the old worn out bushing


5) Now assemble the provided press tool by putting the washer on the bolt and one of the bushings with the flat side against this washer


6) Place the cup in position then put the bolt with the washer and bushing through


7) Hold on to one end and use a wrench to turn the other side to press the bushing in


8) Reinstall the accelerator pedal
