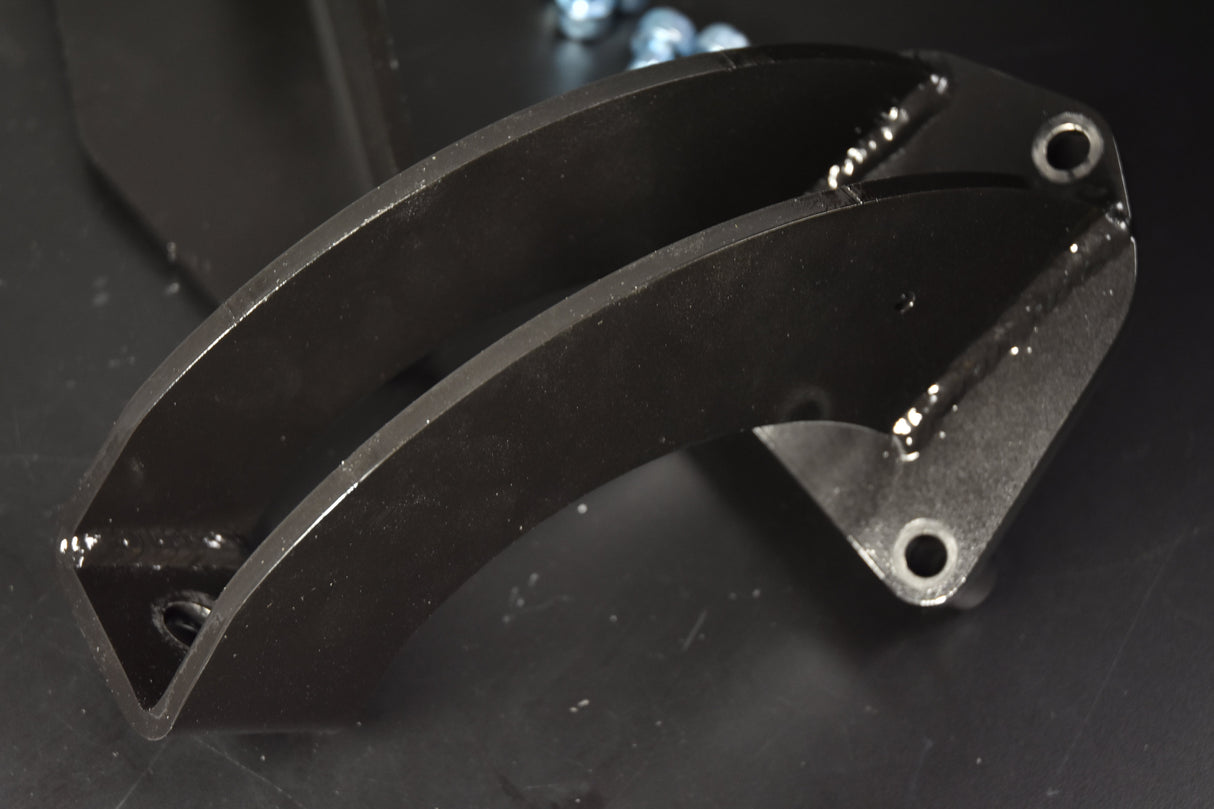

E36/E46 B48 Steel Engine Mount Brackets

Overview

These are a cheaper version of our CNC B48 Motor Mount Brackets these weigh a little more but also won’t lighten your wallet.

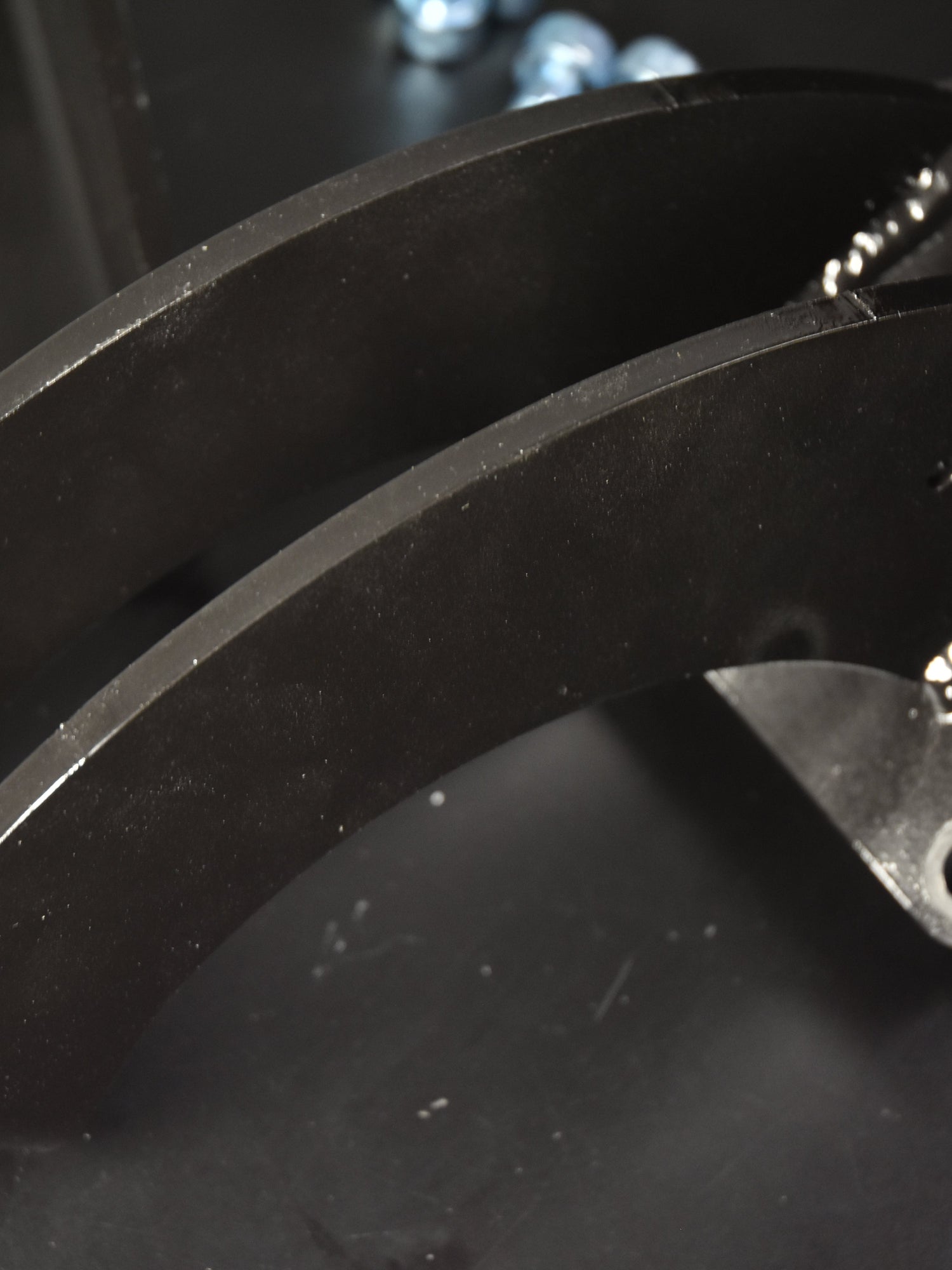

Laser cut and CNC bent from mild steel and welded on a jig in-house at Strom you can be sure of quality and fitment.

The final version will be zinc plated, not painted black as pictured.

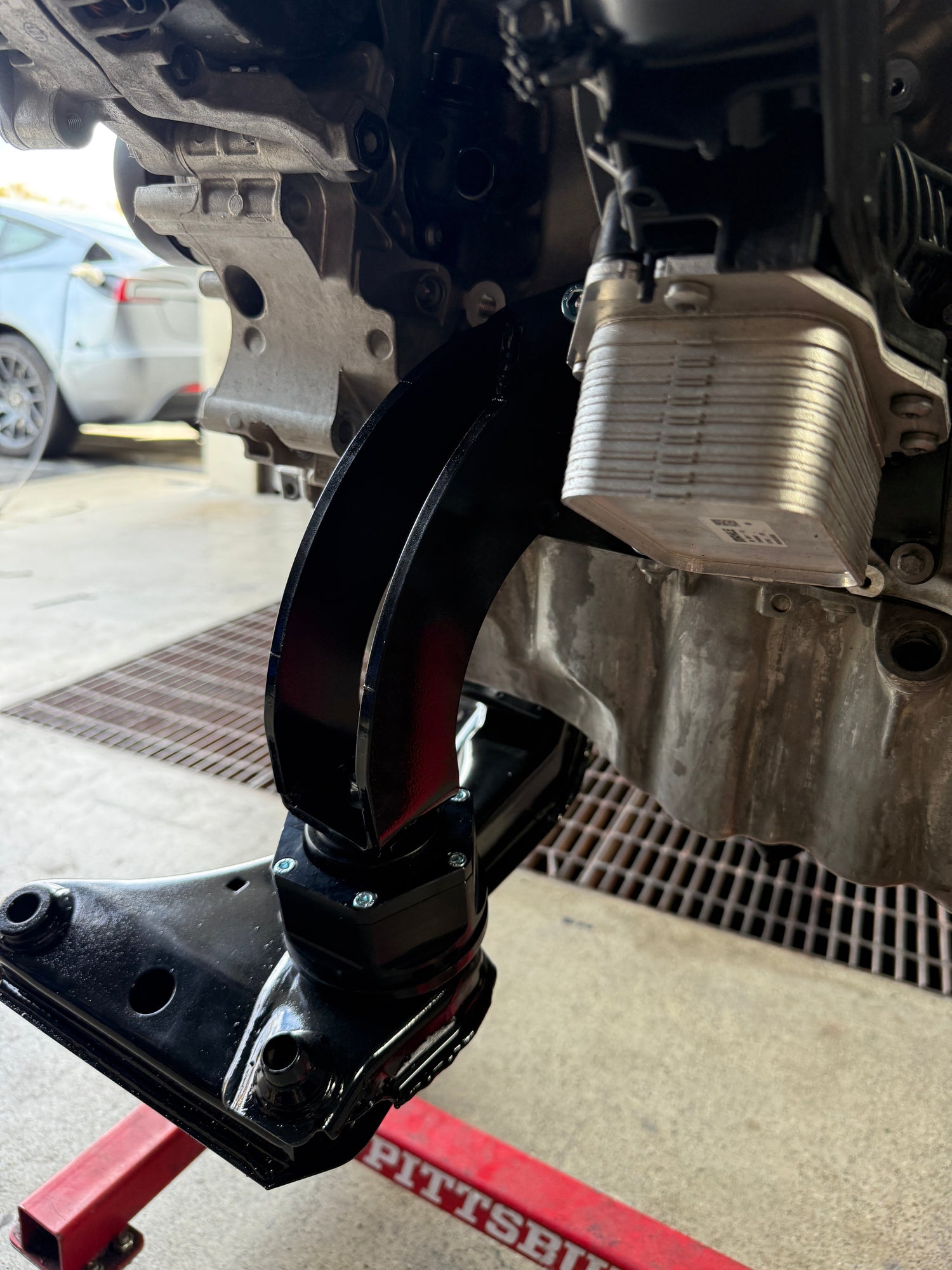

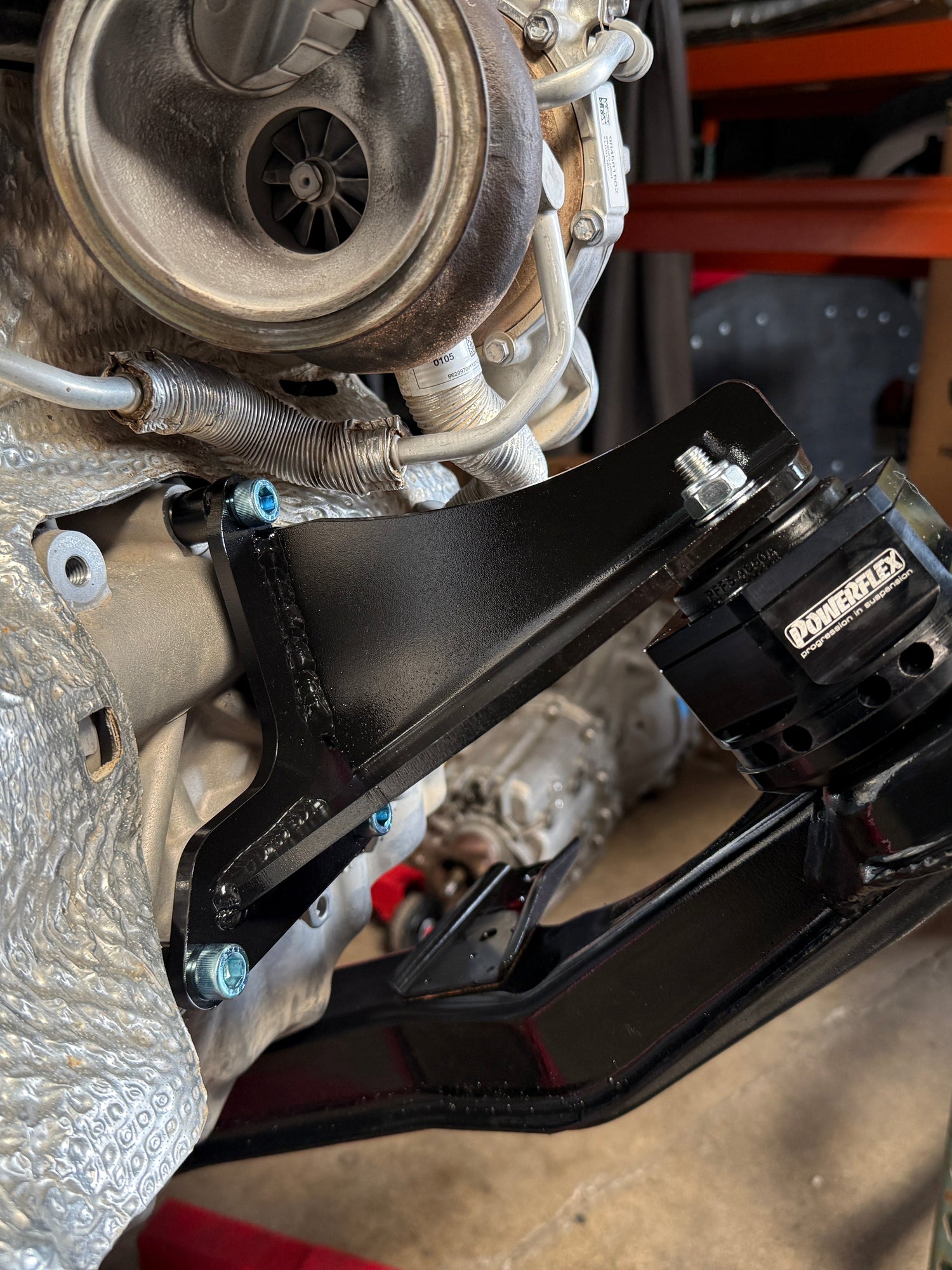

Designed specifically for BMW E36 and E46 B48 engine swaps, this mounting solution positions the engine efficiently within the chassis while maintaining compatibility with factory-style components. The kit interfaces directly with OEM E36/E46 subframes and supports factory-style engine mounts, giving you flexibility to run stock rubber mounts for street-driven builds or solid/poly mounts for track and race applications.

Any engine mount or bushing designed for an E46 with M54 or S54 compatibility will work with this setup. On the Garagistic Grip-B48 E36 project car, Garagistic polyurethane mounts were successfully used during the conversion.

If you plan to use Motec or Similar, you might want to also pick up a Valvetronic Lockout Kit!

If you plan to delete the AC, then you will also need to make sure you get this pulley.

Check out all the parts we offer for this swap here.

If you are interested in learning more about this swap before diving in, be sure to check our YouTube channel on the full E36 B48 Build series with Strom.

Features:

• Optimized for strength and weight relative to cost
• For use with a B48 engine in an E46 or E36 chassis
  • Just clears subframe at front of oil pan however minor modification/ fabrication required to provide clearance for the engine at the back of the engine bay.
• Welded steel engine brackets
• Compatible with Garagistic E36 X-Brace

Don't forget to get a weld-it-yourself DSSR to help with your swap.
